Name: 400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Brand: Pinnacle Technology Co., Limited
SKU: PTC-A4030-50W
Price: 22,238.00 USD
Availability: InStock

Evde > Ürünler > rf güç amplifikatörü modülü >

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

400-3000MHz RF power amplifier module

50W broadband RF amplifier

wide band power amplifier module

Menşe yeri:

SHENZHEN ÇİN

Marka adı:

PTC

Sertifika:

QS,CE

Model numarası:

PTC-A4030-50W

Bizimle İletişim

A talebi Çeviri:

Ürün Ayrıntıları

Vurgulamak:

400-3000MHz RF power amplifier module

50W broadband RF amplifier

wide band power amplifier module

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Neg

Ambalaj bilgileri

karton ambalaj

Teslim süresi

3-30 gün

Ödeme koşulları

Western Union, T/T, L/C, D/A, D/P

Yetenek temini

50000/A

İlgili Ürünler

Video

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

En İyi Fiyatı Alın

Video

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

En İyi Fiyatı Alın

Video

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

En İyi Fiyatı Alın

Katı Durumlu 200W Yüksek Güçlü 2.4G Amplifier

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

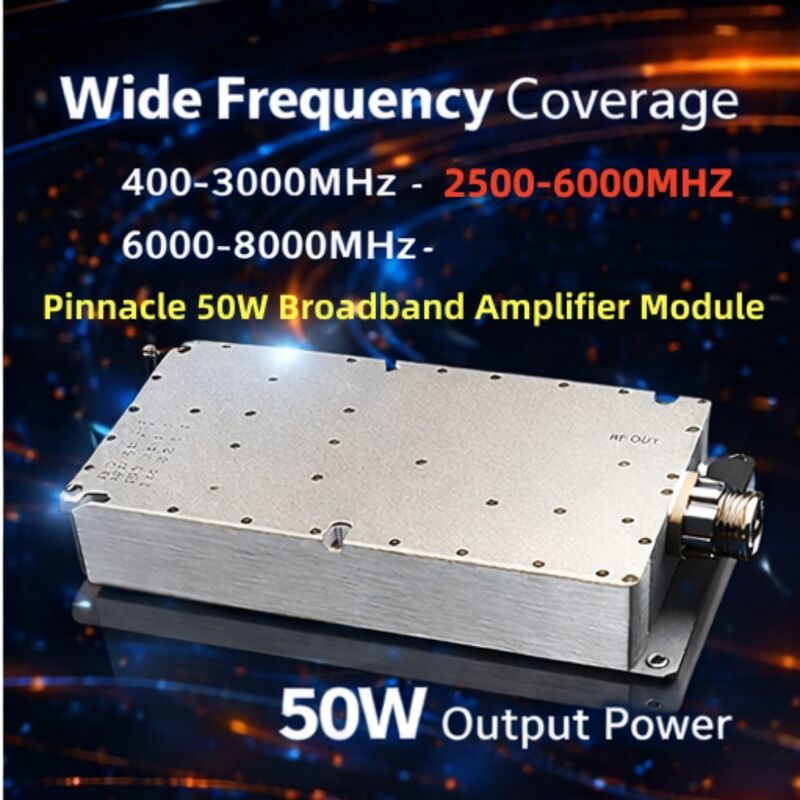

400-3000MHz Broadband Wide Band 50W RF Power Amplifier Module

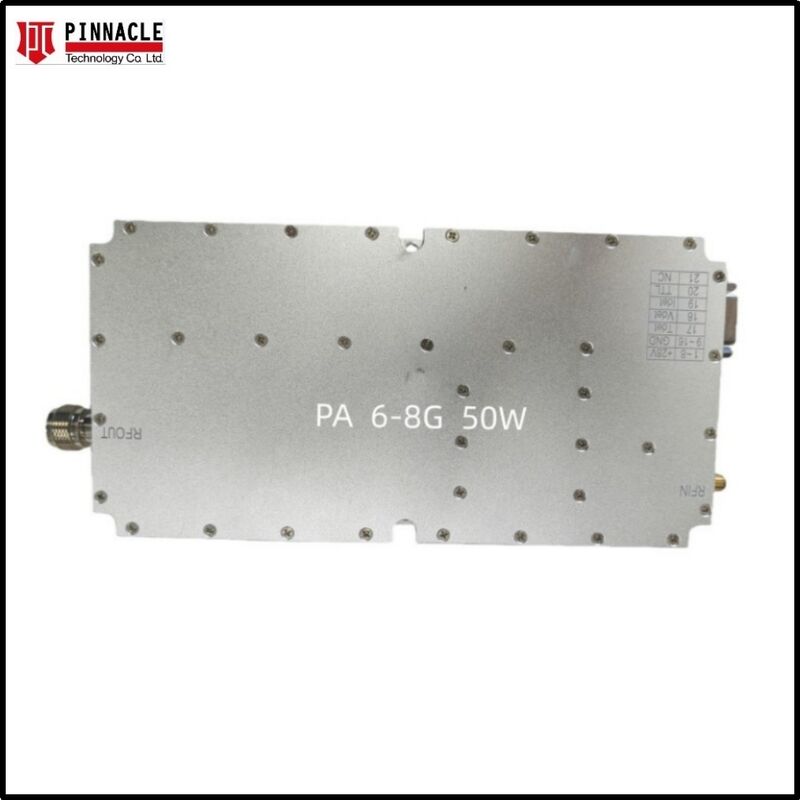

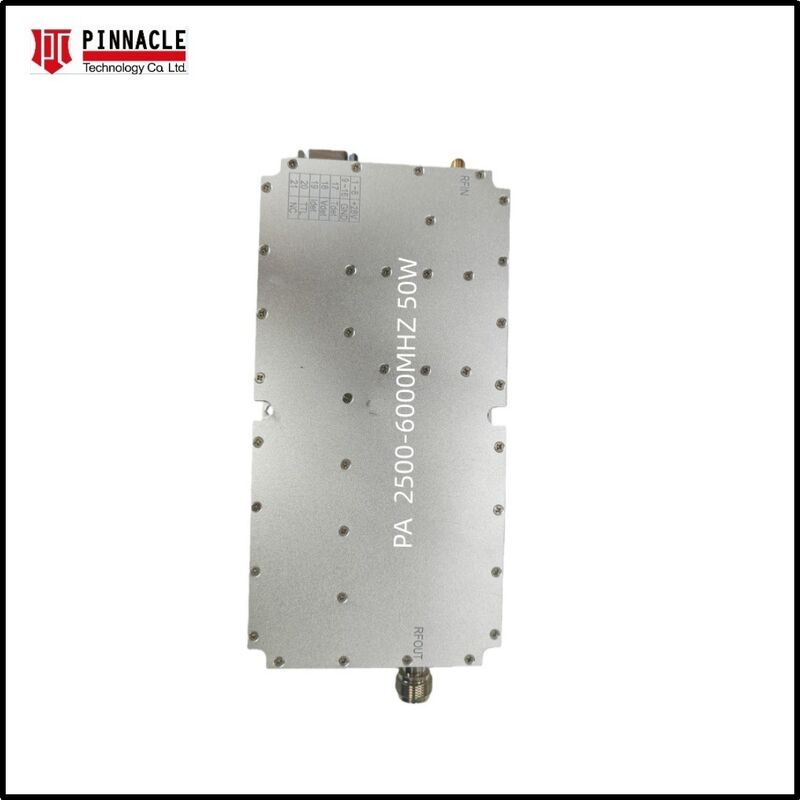

This 400-3000MHz RF Module 50W Power Amplifier is a no signal source power amplifier module delivering 50W output power. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.

Key Features

Ultra-Wideband Performance

Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers.

Advanced GaN Technology

Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management.

Built-in Protection

Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection.

Compact & Rugged Design

Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and military environments.

Customization Options

Frequency range and output power can be customized according to specific requirements.

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	400-3000MHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (Not including connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃

50W RF Amplifier Module Custom Signal Jammer Source High Power RF Module 8GHz WiFi6E Jammer Module 400-8000MHz Amplifier Module RF Power Amplifier Broadband Amplifier
